3:1 Polyolefin Heatshrink Tubing

Heat Shrinkable Sleeve 3-1-ratio supplier in jamnagar, All Types of Heat Shrinkable Sleeve Supplier in jamnagar, Heavy Duty Cable tie supplier in jamnagar, Cable Accessories Supplier in jamnagar

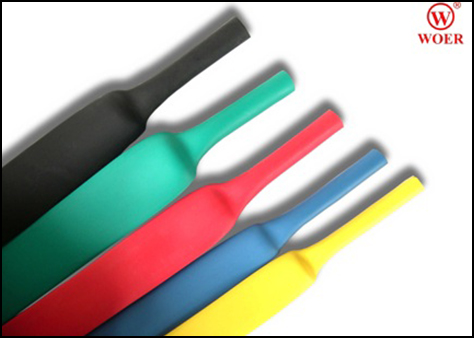

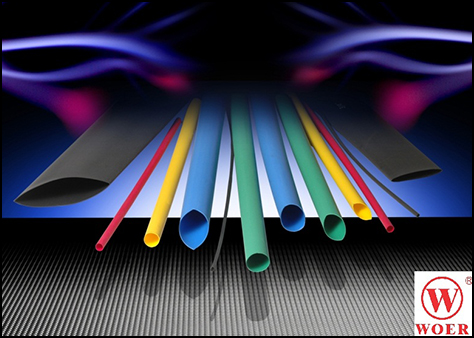

3:1 Polyolefin Heat Shrink Tubing

ShrinkFlex 3:1 polyolefin heat shrink tubing is an effective and economical way to professionally finish the ends of any wire harness application. The over-expanded product configuration easily fits over the end of a connector, and shrinks down to 33% of its original diameter to fit snugly over the wires. With our wide assortment of bright colors, now you can attractively color coordinate the ends of our expandable braided sleeving.

  • Flexible
  • Zero halogen
  • Flame retardant
  • Low smoke generation if burning
  • Continuous Operating Temperature:-45 to125
  • Shrink Temperature:120
  • RoHS and Sony compliant
Use Electrical Heat Gun to shrink the sleeves for best result.

Dimensions, Technical.

Size As supplied After Recovery(mm) Standard Package
Inch mm Internal diameter(mm) Internal diameter Max(mm) Wall thickness Nom(mm) Spool Length
mtrs/spool
3/64 0.8 1.1±0.2 0.50 0.22 200
1/16 1.0 1.5±0.2 0.65 0.28 200
1.5 2.0±0.2 0.85 0.32 200
3/32 2.0 2.5±0.2 1.00 0.35 200
2.5 3.0±0.2 1.30 0.38 200
1/8 3.0 3.5±0.2 1.50 0.40 200
3.5 4.0±0.2 1.80 0.42 200
4.0 4.5±0.2 2.00 0.45 200
3/16 4.5 5.0±0.2 2.30 0.50 200
5.0 5.5±0.2 2.5 0.55 100
1/4 6.0 6.5±0.2 3.0 0.55 100
5/16 7.0 7.5±0.3 3.5 0.55 100
8.0 8.5±0.3 4.0 0.60 100
3/8 9.0 9.5±0.3 4.5 0.60 100
10.0 10.5±0.3 5.0 0.60 100
11.0 11.5±0.3 5.5 0.60 100
1/2 12.0 12.5±0.3 6.0 0.60 100
13.0 13.5±0.3 6.5 0.65 100
14.0 14.5±0.3 7.0 0.65 100
5/8 15.0 15.5±0.4 7.5 0.70 100
16.0 16.5±0.4 8.0 0.70 100
17.0 17.5±0.4 8.5 0.70 100
3/4 18.0 19.0±0.5 9.0 0.80 100
20.0 21.0±0.5 10.0 0.80 100
22.0 23.0±0.5 11.0 0.80 100
1 25.0 26.0±0.5 12.5 0.90 50
28.0 29.0±0.5 14.0 0.90 50
1-1/4 30.0 31.5±1.0 15.0 0.95 50
35.0 36.5±1.0 17.5 1.00 50
1-1/2 40.0 41.5±1.0 20.0 1.00 50
45.0 46.5±1.0 22.5 1.00 25
2 50.0 ≥50 25.0 1.00 25
60.0 ≥60 31.0 1.30 25
70.0 ≥70 36.0 1.30 25
3 80.0 ≥80 41.0 1.46 25
90.0 ≥90 46.0 1.46 25
4 100.0 ≥100 51.0 1.46 25
5 120.0 ≥120 61.0 1.56 25
6 150.0 ≥150 76.0 1.56 25
7 180.0 ≥180 91.0 1.56 25
